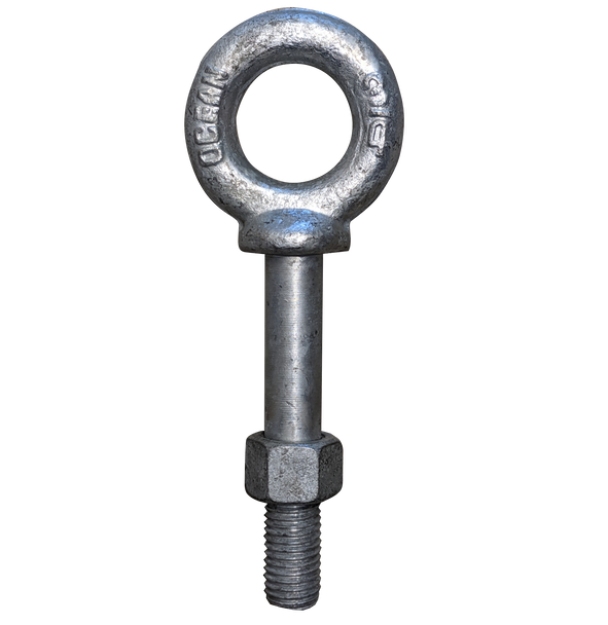

Description
Material: Forged Steel
Processing: Drop Forged,Quenched and Tempered
Finish: Hot Dipped Galvanized
Size: from 1/4 x 2″ to 1-1/2 x 15″
Safety Factor: 5:1
Shoulder Nut Eye Bolts – Full Size Table (MM)
| Size (in) |
Size (mm) |
WLL (lb) |
Weight /100 pcs (lb) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
J (mm) |
| 1/4 x 2 |
6.35 x 50.8 |
650 |
6.6 |
6.35 |
12.70 |
22.35 |
4.83 |
38.10 |
50.80 |
74.68 |
12.70 |
11.94 |
| 1/4 x 4 |
6.35 x 101.6 |
650 |
9.1 |
6.35 |
12.70 |
22.35 |
4.83 |
63.50 |
101.60 |
125.48 |
12.70 |
11.94 |
| 5/16 x 2 1/4 |
7.94 x 57.15 |
1200 |
12.5 |
7.87 |
15.75 |
28.45 |
6.35 |
38.10 |
57.15 |
88.90 |
17.53 |
14.22 |
| 5/16 x 4 1/4 |
7.94 x 107.95 |
1200 |
18.8 |
7.87 |
15.75 |
28.45 |
6.35 |
63.50 |
107.95 |
139.70 |
17.53 |
14.22 |
| 3/8 x 2 1/2 |
9.53 x 63.5 |
1550 |
21.4 |
9.65 |
19.05 |
35.05 |
7.87 |
38.10 |
63.50 |
100.84 |
19.81 |
16.76 |
| 3/8 x 4 1/2 |
9.53 x 114.3 |
1550 |
25.3 |
9.65 |
19.05 |
35.05 |
7.87 |
63.50 |
114.30 |
151.64 |
19.81 |
16.76 |
| 1/2 x 3 1/4 |
12.70 x 82.55 |
2600 |
42.6 |
12.70 |
25.40 |
44.45 |
9.65 |
38.10 |
82.55 |
130.05 |
25.40 |
23.11 |
| 1/2 x 6 |
12.70 x 152.4 |
2600 |
56.8 |
12.70 |
25.40 |
44.45 |
9.65 |
76.20 |
152.40 |
200.15 |
25.40 |
23.11 |
| 5/8 x 4 |
15.88 x 101.6 |
5200 |
68.6 |
15.75 |
31.75 |
57.15 |
12.70 |
50.80 |
101.60 |
163.58 |
33.27 |
28.45 |
| 5/8 x 6 |
15.88 x 152.4 |
5200 |
102.4 |
15.75 |
31.75 |
57.15 |
12.70 |
76.20 |
152.40 |
214.38 |
33.27 |
28.45 |
| 3/4 x 4 1/2 |
19.05 x 114.3 |
7200 |
144.5 |
19.05 |
38.10 |
69.85 |
15.75 |
50.80 |
114.30 |
188.98 |
39.62 |
35.05 |
| 3/4 x 6 |
19.05 x 152.4 |
7200 |
167.5 |
19.05 |
38.10 |
69.85 |
15.75 |
76.20 |
152.40 |
227.08 |
39.62 |
35.05 |
| 7/8 x 5 |
22.23 x 127 |
10600 |
225.0 |
22.35 |
44.45 |
82.55 |
19.05 |
63.50 |
127.00 |
214.88 |
46.74 |
39.62 |
| 1 x 6 |
25.40 x 152.4 |
13300 |
366.3 |
25.40 |
50.80 |
95.25 |
22.35 |
76.20 |
152.40 |
253.24 |
53.09 |
45.97 |
| 1 x 9 |
25.40 x 228.6 |
13300 |
422.5 |
25.40 |
50.80 |
95.25 |
22.35 |
101.60 |
228.60 |
329.44 |
53.09 |
45.97 |
| 1 1/4 x 8 |
31.75 x 203.2 |
21000 |
650 |
31.75 |
63.50 |
114.30 |
25.40 |
101.60 |
203.20 |
322.58 |
62.74 |
57.91 |
| 1 1/4 x 12 |
31.75 x 304.8 |
21000 |
795 |
31.75 |
63.50 |
114.30 |
25.40 |
101.60 |
304.80 |
425.45 |
62.74 |
57.91 |
| 1 1/2 x 15 |
38.10 x 381 |
24000 |
1425 |
38.10 |
76.20 |
139.70 |
31.75 |
152.40 |
381.00 |
526.42 |
76.20 |
69.85 |
