Heavy-duty Grade 70 clevis grab hook with safety latch made from forged alloy steel for towing, transport chain, cargo securement, and chain shortening applications.
Grade 70 Clevis Grab Hook with Safety Latch A330N is a reliable transport chain hook designed for towing, load securement, pulling, and chain shortening applications. Manufactured from forged alloy steel, this hook delivers excellent strength and durability for heavy-duty use.
The integrated safety latch prevents accidental chain disengagement, offering extra security during transport and towing operations. The clevis pin connection allows quick and easy attachment to chain ends.

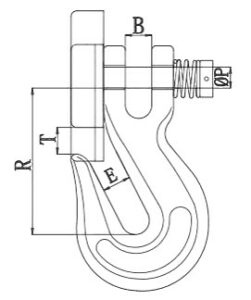

| Size | Dimensions(mm) | WLL(T) | Weight | ||||||
| Inch | MM | B | E | P | R | T | Carbon | Alloy | KG |
| 1/4” | 6 | 9.1 | 10 | 8.0 | 50.0 | 10.0 | 1.17 | 1.63 | 0.28 |
| 5/16” | 8 | 10.2 | 11.2 | 11.5 | 56.0 | 12.0 | 1.77 | 2.45 | 0.43 |
| 3/8” | 10 | 12.0 | 12.7 | 12.0 | 66.7 | 10.5 | 2.45 | 3.4 | 0.60 |
| 1/2” | 13 | 16.8 | 16.8 | 16.0 | 83.5 | 17.8 | 4.17 | 5.78 | 1.18 |
| 5/8” | 16 | 23.1 | 19.8 | 19.0 | 105.0 | 20.4 | 5.78 | 8.62 | 2.12 |
| Size(in) | 1/4", 5/16", 3/8", 1/2", 5/8" |
|---|
