Heavy-duty Grade 80 lifting eye shortening grab hook for chain sling adjustment and overhead lifting applications. EN 1677-1 certified, proof tested, red painted finish.
Lifting Eye Shortening Grab Hook is a heavy-duty Grade 80 alloy steel hook designed for shortening, adjusting, and connecting lifting chains in overhead lifting and rigging applications. Equipped with a strong eye connection, this hook allows easy attachment to chain slings, master links, connectors, or other lifting components.
Manufactured from high tensile alloy steel and tested to international standards, this grab hook is ideal for industrial lifting environments such as construction sites, factories, warehouses, transport yards, and heavy rigging operations.

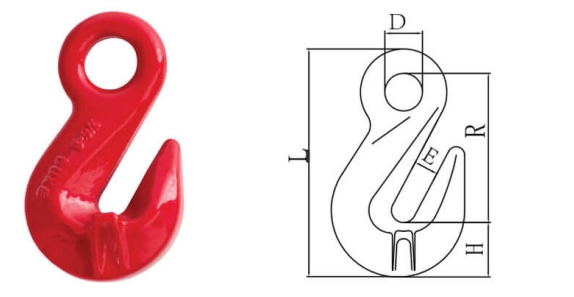

| WLL (Tonne) | Chain Size (mm) | Weight (kg) | D (mm) | E (mm) | H (mm) | L (mm) | R (mm) |
|---|---|---|---|---|---|---|---|
| 2 | 7 / 8 | 0.35 | 18 | 10.8 | 21.5 | 93 | 52.5 |
| 3.15 | 10 | 0.65 | 20.5 | 13 | 29 | 122 | 79.8 |
| 5.3 | 13 | 1.34 | 26 | 16.5 | 42.8 | 158 | 99.7 |
| 8 | 16 | 2.1 | 30.5 | 19 | 44.5 | 169 | 106.5 |
| 12.8 | 18 / 20 | 4 | 37.5 | 24 | 56 | 219 | 140.2 |
| 16 | 22 | 6.36 | 44 | 28 | 68 | 259 | 165 |
| 21.2 | 26 | 10.6 | 49 | 30 | 77 | 306 | 197 |
| 31.5 | 32 | 19.4 | 57 | 38 | 95 | 361 | 226 |
| Capacity | 2T, 3.15T, 5.3T, 8T, 12.8T, 16T, 21.2T, 31.5T |
|---|
