D shackles, essential in numerous industries, play a pivotal role in lifting, rigging, and linking ropes and chains. Their widespread use as a standard in industrial equipment underscores their versatility and reliability.

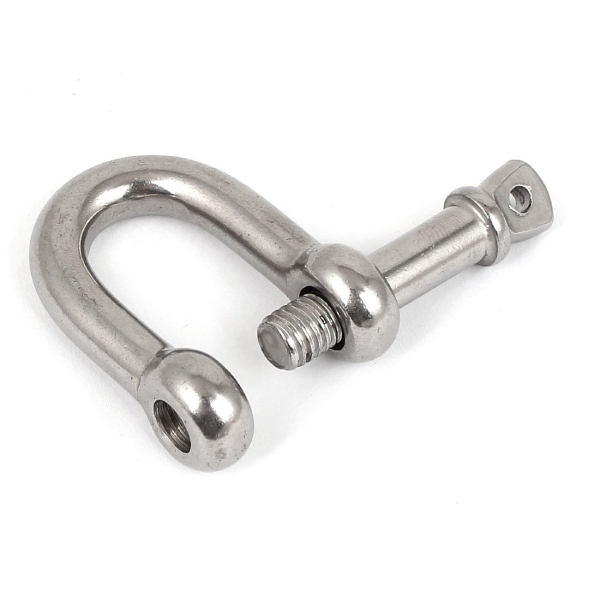

EU / JIS Stainless Steel Dee Shackle is a heavy-duty D-shaped connecting component designed for lifting, rigging, marine, towing, fastening, and industrial load connection applications. The straight-sided Dee (D) shape provides strong in-line load handling, making it ideal for direct pull and single-direction load connections.
Manufactured from premium AISI 316 / AISI 304 stainless steel, these shackles offer excellent corrosion resistance, high strength, and long operational life. Built according to EU (European) and JIS (Japanese Industrial Standards), they are suitable for marine, industrial, outdoor, and demanding environments.

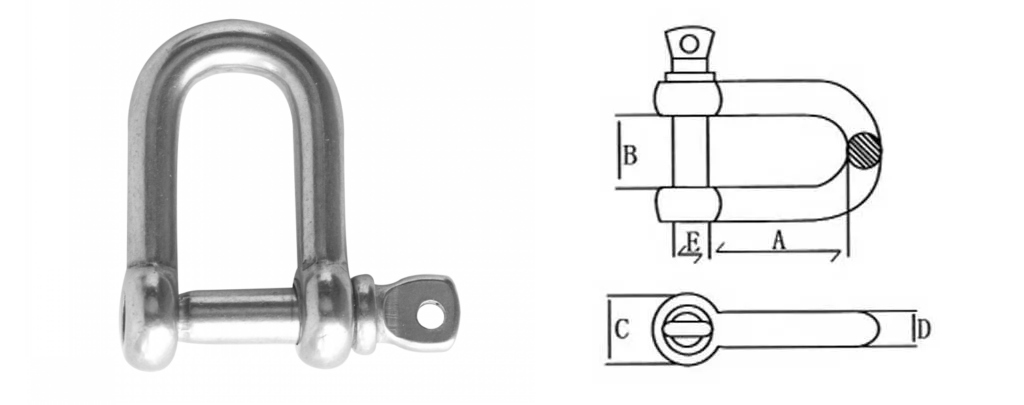

| EU/JIS Stainless Steel Dee Shackle Sizes | ||||||||||||
| Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Work Load Limit (kg) | ||||||
| mm | EU | JIS | EU | JIS | EU | JIS | EU | JIS | EU | JIS | EU | JIS |
| 4 | 16 | 14 | 8 | 8 | 8 | 8 | 4 | 4 | 4 | 4 | 80 | 50 |
| 5 | 20 | 16 | 10 | 10 | 10 | 10 | 5 | 5 | 5 | 5 | 100 | 80 |
| 6 | 24 | 22 | 12 | 12 | 12 | 12 | 6 | 6 | 6 | 6 | 200 | 100 |
| 8 | 32 | 27 | 16 | 16 | 16 | 16 | 8 | 8 | 8 | 8 | 320 | 200 |
| 10 | 40 | 31 | 20 | 20 | 20 | 20 | 10 | 10 | 10 | 10 | 520 | 320 |
| 12 | 48 | 40 | 24 | 24 | 24 | 24 | 12 | 12 | 12 | 12 | 800 | 520 |
| 14 | 56 | 46 | 28 | 28 | 28 | 28 | 14 | 14 | 14 | 14 | 1100 | 700 |
| 16 | 64 | 52 | 32 | 32 | 32 | 32 | 16 | 16 | 16 | 6 | 1500 | 800 |
| 18 | 72 | 58 | 36 | 36 | 36 | 36 | 18 | 18 | 18 | 18 | 2100 | 990 |
| 20 | 76 | 64 | 40 | 40 | 40 | 40 | 20 | 20 | 20 | 20 | 3000 | 1100 |
| 22 | 88 | 75 | 44 | 44 | 44 | 44 | 22 | 22 | 22 | 22 | 3500 | 1500 |
| 25 | 100 | 83 | 50 | 50 | 50 | 50 | 25 | 25 | 25 | 25 | 5000 | 2100 |
| 28 | 112 | 96 | 56 | 56 | 56 | 56 | 28 | 28 | 28 | 28 | 7000 | 3000 |
| 32 | 128 | 114 | 64 | 64 | 64 | 64 | 32 | 32 | 32 | 32 | 8000 | 3500 |
| 36 | 144 | 116 | 72 | 72 | 72 | 72 | 36 | 36 | 36 | 36 | —— | 4600 |
| 38 | 52 | 152 | 76 | 76 | 76 | 76 | 38 | 38 | 38 | 38 | —— | 5000 |
| Size | 4MM, 5MM, 6MM, 8MM, 10MM, 12MM, 14MM, 16MM, 18MM, 20MM, 22MM, 25MM, 28MM, 32MM, 36MM, 38MM |
|---|
