Concrete Lifting Socket

Our Concrete Lifting Socket is a specialized component used in the construction industry for securely lifting and handling concrete elements, particularly precast concrete panels, walls, or slabs. These sockets are typically embedded or cast into the concrete during the manufacturing or casting. They provide a robust attachment point for cranes or lifting equipment, allowing for the safe and precise hoisting and transporting of heavy concrete elements on construction sites. Our Concrete lifting sockets are engineered to meet strict safety and load-bearing standards to ensure these substantial components’ reliable and secure handling. They are essential for construction projects, contributing to efficient and safe material handling and installation.

Order Sheet

Size Tonne Quantity Sku
0.5T
0.8T
1.2T
1.6T
2T
2.5T
4T
6.3T
8T
12.5T

Description

Industrial Concrete Lifting Socket

SSTC offer heavy-duty Lifting Sockets. The Lifting Loop must be screwed into the socket completely. You may need to clean the concrete residue in the thread of the lifting anchor by means of thread cleaner.

  • Galvanized steel wire  (DIN EN 12385-4)
  • The wire rope is made of a special zinc solid steel wire rope
  • The thread is made of bright precision steel.
  • Fits for application with all thread system anchors like Cast-in Concrete Inserts, Waved end lifting anchors etc.
  • WLL and JBL is marked.

Specifications:

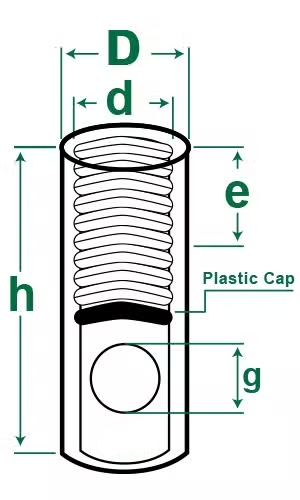

concrete lifting socket 1
ItemCode(s) Thread Finished WLL Dimensions
d D g h e
mm Tonne mm mm mm mm
SKRD-12 Rd 12 0.5 15 8 40 22
SKRD-14 Rd 14 0.8 18 10 47 25
SKRD-16 Rd 16 1.2 21 13 54 27
SKRD-18 Rd 18 1.6 24 13 65 34
SKRD-20 Rd 20 2 27.2 15 69 35
SKRD-24 Rd 24 2.5 31 18 78 43
SKRD-30 Rd 30 4 40 22 103 56
SKRD-36 Rd 36 6.3 47 27 125 68
SKRD-42 Rd 42 8 54 32 145 80
SKRD-52 Rd 52 12.5 67.2 40 195 100

Additional information

Size (Tonne)

0.5T, 0.8T, 1.2T, 1.6T, 2T, 2.5T, 4T, 6.3T, 8T, 12.5T
