Our lifting products are widely preferred in industrial markets due to their dependable quality, precision engineering, and complete specification range. Trusted by distributors and export businesses alike, these products are recognized for durability, consistent performance, and strong acceptance across international markets.
Our lifting products are widely preferred in industrial markets due to their dependable quality, precision engineering, and complete specification range. Trusted by distributors and export businesses alike, these products are recognized for durability, consistent performance, and strong acceptance across international markets. Continuous repeat orders and growing demand reflect their reliability and value in heavy-duty applications.
The expanding production capabilities and commitment to quality assurance ensure continued growth, innovation, and long-term customer satisfaction.
| Type | Capacity (Ton) | Lifting Height (m) | Lifting Speed (m/min) | Lifting Motor Power (kW) | Rotation Speed (r/min) | Phases | Voltage (V) | Frequency (Hz) |
|---|---|---|---|---|---|---|---|---|
| LDR_00501 | 0.5 | 3/9 | 6.8 | 0.75 | 1440 | 3 | 380 | 50 |
| LDR_0102 | 1 | 3/9 | 3.4 | 0.75 | 1440 | 3 | 380 | 50 |
| LDR_0101 | 1 | 3/9 | 6.6 | 1.5 | 1440 | 3 | 380 | 50 |
| LDR_01501 | 1.5 | 3/9 | 8.8 | 3.0 | 1440 | 3 | 380 | 50 |
| LDR_0201 | 2 | 3/9 | 6.6 | 3.0 | 1440 | 3 | 380 | 50 |
| LDR_0202 | 2 | 3/9 | 3.3 | 1.5 | 1440 | 3 | 380 | 50 |
| LDR_02501 | 2.5 | 3/9 | 5.4 | 3.0 | 1440 | 3 | 380 | 50 |
| LDR_0301 | 3 | 3/9 | 5.4 | 3.0 | 1440 | 3 | 380 | 50 |
| LDR_0302 | 3 | 3/9 | 4.4 | 3.0 | 1440 | 3 | 380 | 50 |
| LDR_0303 | 3 | 3/9 | 2.2 | 1.5 | 1440 | 3 | 380 | 50 |
| LDR_0502 | 5 | 3/9 | 2.7 | 3.0 | 1440 | 3 | 380 | 50 |

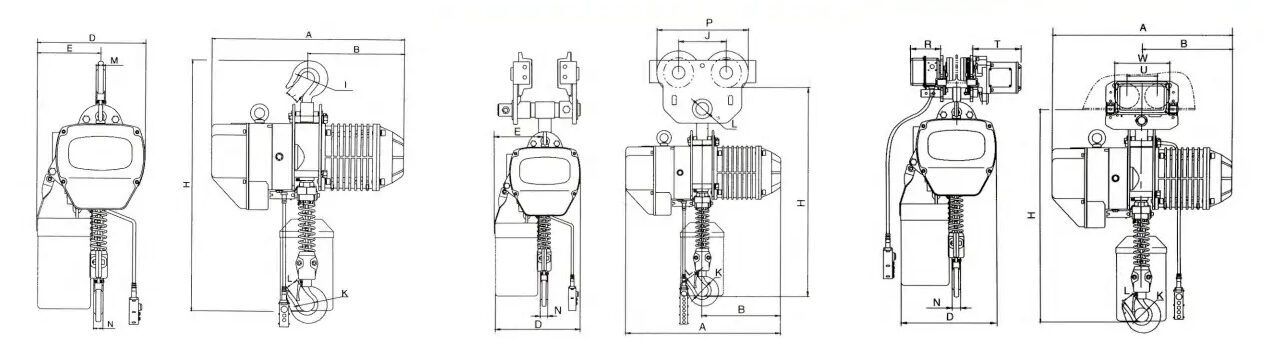

| Type | Capacity (Ton) | H (mm) | A (mm) | B (mm) | D (mm) | E (mm) | I (mm) | J (mm) | K (mm) | L (mm) | M (mm) | N (mm) | Chain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LDR_00501 | 0.5 | 540 | 455 | 240 | 285 | 165 | 34 | 28 | 34 | 25 | 19 | 19 | 6.3 |
| LDR_0102 | 1 | 575 | 455 | 240 | 285 | 165 | 34 | 28 | 34 | 25 | 19 | 19 | 6.3 |
| LDR_0101 | 1 | 650 | 520 | 260 | 300 | 176 | 42 | 32 | 42 | 32 | 24 | 24 | 7.1 |
| LDR_01501 | 1.5 | 800 | 615 | 295 | 430 | 265 | 49 | 40 | 49 | 40 | 30 | 30 | 10.0 |
| LDR_0201 | 2 | 800 | 615 | 295 | 430 | 265 | 49 | 40 | 49 | 40 | 30 | 30 | 10.0 |
| LDR_0202 | 2 | 835 | 520 | 260 | 300 | 236 | 49 | 40 | 49 | 40 | 30 | 30 | 7.1 |
| LDR_02501 | 2.5 | 845 | 615 | 295 | 430 | 265 | 59 | 48 | 59 | 48 | 35 | 35 | 11.2 |
| LDR_0301 | 3 | 845 | 615 | 295 | 430 | 265 | 59 | 48 | 59 | 48 | 35 | 35 | 11.2 |
| LDR_0302 | 3 | 950 | 615 | 295 | 430 | 320 | 59 | 48 | 59 | 48 | 35 | 35 | 10.0 |
| LDR_0303 | 3 | 950 | 520 | 260 | 350 | 205 | 59 | 48 | 59 | 48 | 35 | 35 | 7.1 |
| LDR_0502 | 5 | 1030 | 615 | 295 | 430 | 325 | 60 | 48 | 60 | 48 | 43 | 43 | 11.2 |
| Capacity | 0.5 Ton, 1 Ton, 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton, 5 Ton |
|---|---|
| Lifting Height | 3 Meter, 9 Meter |
