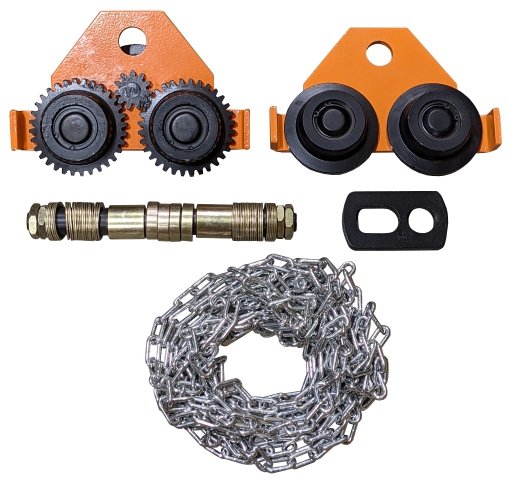

Geared Beam Trolley is designed for smooth horizontal movement of chain hoists, lever hoists, and suspended loads along I-Beams and H-Beams. It provides precise load positioning, easy travel control, and stable movement in lifting operations. The geared hand-chain mechanism allows safe and controlled movement even under full load.
Geared Beam Trolley is designed for smooth horizontal movement of chain hoists, lever hoists, and suspended loads along I-Beams and H-Beams. It provides precise load positioning, easy travel control, and stable movement in lifting operations. The geared hand-chain mechanism allows safe and controlled movement even under full load.
These trolleys are factory load tested to 150% of rated capacity and manufactured to meet industrial lifting standards for reliable and durable performance.
Suitable for warehouses, workshops, fabrication plants, construction sites, engineering units, and industrial material handling systems.
| Capacity / Proof Load (Ton) | I-Beam Width (mm) | Min Radius Curve (m) | Net Weight (kg) |
|---|---|---|---|
| 1 / 1.5 | 64 – 203 | 1.0 | 17 |
| 2 / 3 | 88 – 203 | 1.1 | 23.5 |
| 3 / 4.5 | 100 – 203 | 1.3 | 38.7 |
| 5 / 7.5 | 144 – 203 | 1.4 | 55.7 |
| Capacity | 1 Ton, 2 Ton, 3 Ton, 5 Ton |
|---|
