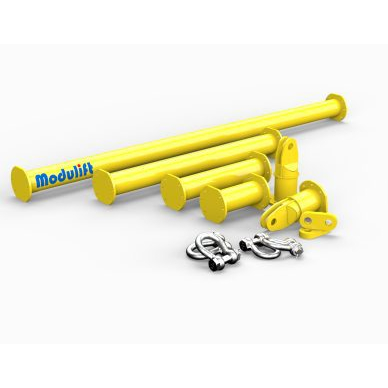

Modular Spreader Beam is a versatile below-the-hook lifting solution designed for safe and efficient lifting of loads across multiple capacities and span lengths. Engineered for flexibility, the modular design allows components to be mixed and reconfigured for different lifting requirements, making it ideal for changing job sites and repeated industrial use.
Modular Spreader Beam is a versatile below-the-hook lifting solution designed for safe and efficient lifting of loads across multiple capacities and span lengths. Engineered for flexibility, the modular design allows components to be mixed and reconfigured for different lifting requirements, making it ideal for changing job sites and repeated industrial use.
Suitable for crane lifting, heavy equipment movement, construction projects, fabrication yards, ports, infrastructure work, and industrial load handling, these spreader beams help distribute weight evenly, reduce sling angle stress, and improve lifting stability.
Designed using advanced engineering methods and manufactured to high quality standards, modular spreader beams offer dependable performance, portability, and long-term value.
| Capacity | End Unit | Drop Link | Strut Sizes Available | Shackles Included | Bolt Kit |
|---|---|---|---|---|---|
| MOD 6 Ton | 3.0 kg | 0.6 kg | 1000mm (8.1kg), 600mm (5.4kg), 300mm (3.4kg), 200mm (2.7kg), 100mm (2.0kg) | 4.75t (1.1kg), 3.25t (0.7kg) | M10 x 30 Grade 8.8 HT |
| MOD 12 Ton | 6 kg | 1.3 kg | 1.5m (19kg), 1.0m (14kg), 0.75m (11kg), 0.5m (8kg), 0.25m (6kg) | 8.5t (2.5kg), 6.5t (2.5kg) | M12 x 40 Grade 8.8 HT |
| MOD 24 Ton | 17 kg | 5 kg | 2.0m (41kg), 1.0m (24kg), 0.5m (16kg) | 17t (8kg), 12t (5kg) | M20 x 50 Grade 8.8 HT |
| MOD 34 Ton | 23 kg | 7 kg | 2.0m (51kg), 1.0m (31kg), 0.5m (20kg) | 25t (14kg), 17t (8kg) | M20 x 50 Grade 8.8 HT |
| MOD 50 Ton | 38 kg | 11 kg | 4.0m (140kg), 2.0m (82kg), 1.0m (53kg), 0.5m (38kg) | 35t (20kg), 25t (14kg) | M20 x 65 Grade 8.8 HT |
| Span / Strut Length | 0.25m, 0.5m, 0.75m, 1m, 1.5m, 2m, 4m |
|---|
