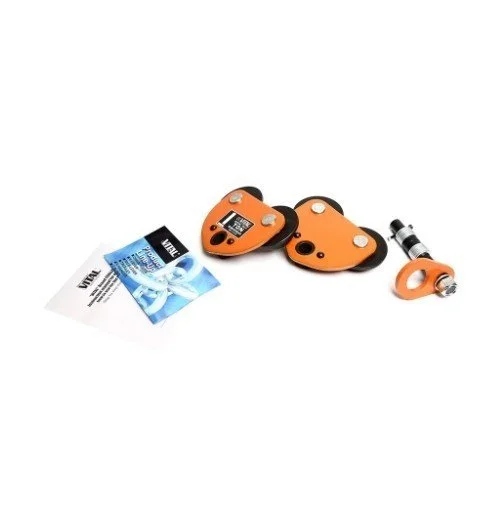

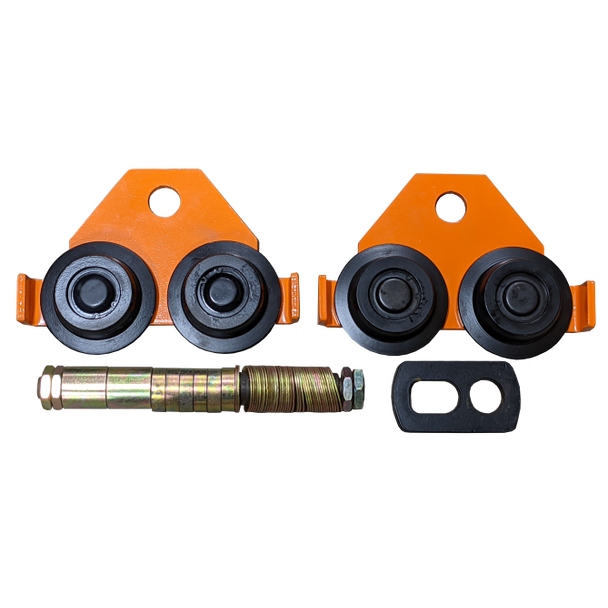

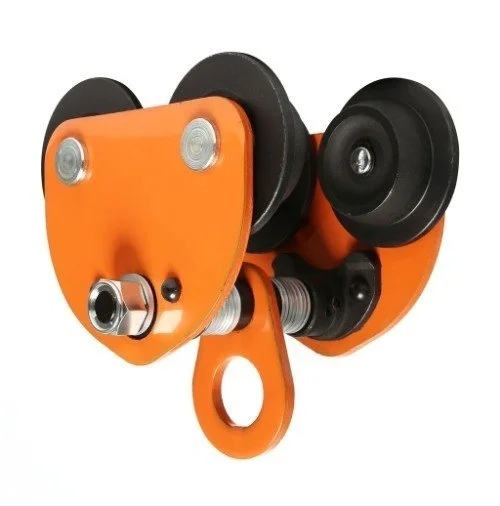

Plain Trolley WINCH 1 -5 Ton

Plain Beam Trolley is designed for smooth horizontal travel of hoists and suspended loads along I-Beams and H-Beams. It provides stable load movement with low rolling resistance, making it ideal for material handling systems, workshops, warehouses, fabrication units, and lifting applications.

  • Price range: SAR 910.76 through SAR 3,083.03
Add to Quote
Size Data Sheet

Description

Plain Beam Trolley is designed for smooth horizontal travel of hoists and suspended loads along I-Beams and H-Beams. It provides stable load movement with low rolling resistance, making it ideal for material handling systems, workshops, warehouses, fabrication units, and lifting applications.

These trolleys are factory load tested to 150% of rated capacity and manufactured for dependable performance, long service life, and easy installation on beam tracks.

Key Features

  • Smooth horizontal movement on beam tracks
  • Heavy-duty steel construction
  • Precision wheel assembly
  • Easy adjustable beam fitting
  • Low rolling resistance
  • Factory load tested to 150% capacity
  • Safe and reliable operation
  • Durable industrial finish
  • Low maintenance design

Capacity / Proof Load (Ton) I-Beam Width (mm) Min Radius Curve (m) Net Weight (kg)
1 / 1.5 64 – 203 1.0 12.8
2 / 3 88 – 203 1.1 18.8
3 / 4.5 100 – 203 1.3 33.7
5 / 7.5 114 – 203 1.4 50.7

Additional information

Capacity

1 Ton, 2 Ton, 3 Ton, 5 Ton

Reviews

There are no reviews yet.

Be the first to review “Plain Trolley WINCH 1 -5 Ton”

Your email address will not be published. Required fields are marked *

Related products

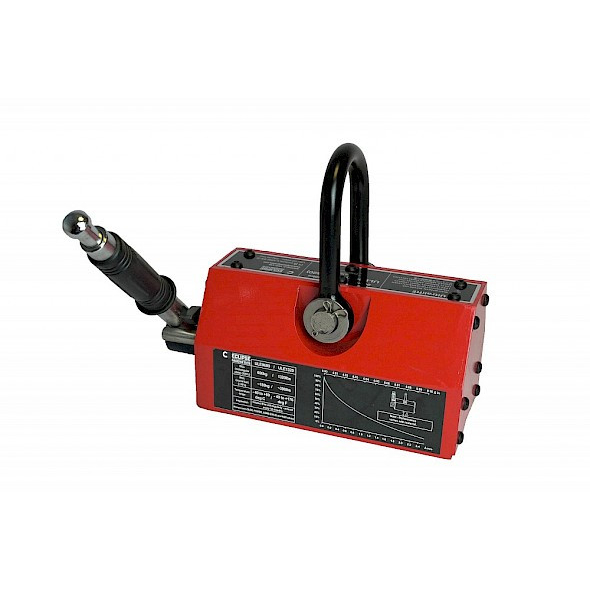

Ultra Lifting Magnet

  • Price range: SAR 1,421.43 through SAR 4,475.49
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

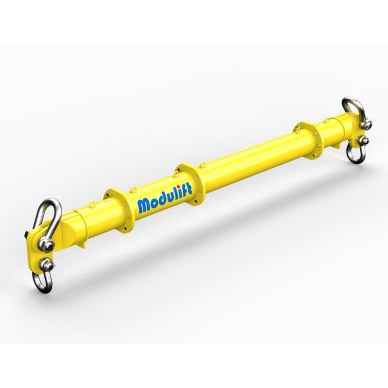

Modular Spreader Beams 50 Ton

  • Price range: SAR 1,623.14 through SAR 4,030.63
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

Modular Spreader Beams 12 Ton

  • Price range: SAR 1,623.14 through SAR 4,030.63
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

Horizontal Lifting Clamp 1-5 Ton

  • Price range: SAR 100.26 through SAR 205.62
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

Beam Clamp 1-5 ton DELTA Beam Clamp Black

  • Price range: SAR 422.89 through SAR 858.92
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

Beam Clamp 1-5 ton DELTA Beam Clamp

  • Price range: SAR 422.89 through SAR 858.92
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

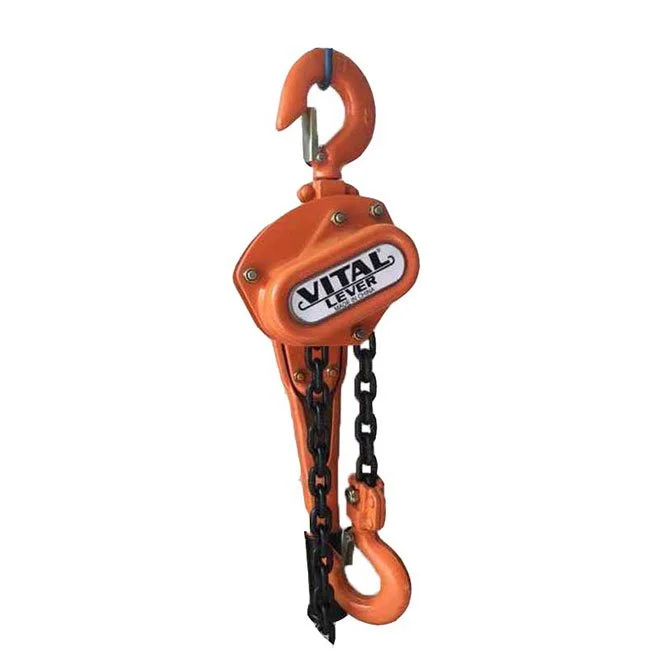

Winch Puller Ratchet Chain Puller–0.5 – 6 Ton Lever Hoist

  • Price range: SAR 501.65 through SAR 3,189.25
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

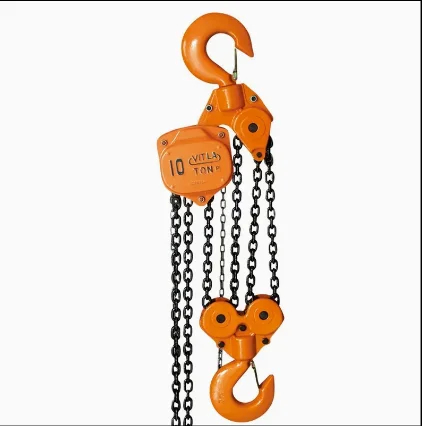

Chain Hoist Vita 10 Tonne

  • Price range: SAR 1,881.40 through SAR 3,856.54
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

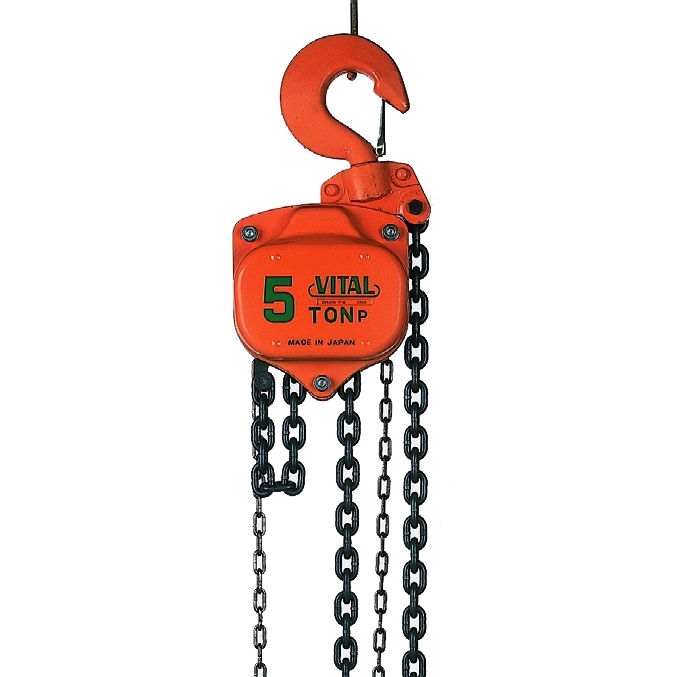

Chain Hoist Vital 5 Tonne

  • Price range: SAR 1,281.40 through SAR 3,256.54
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

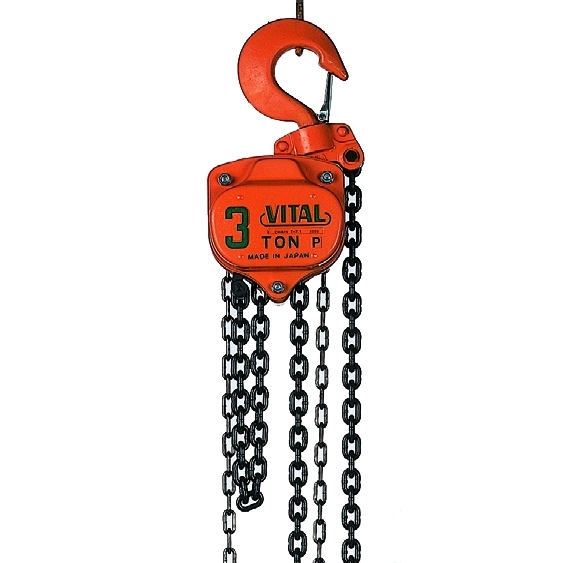

Chain Hoist Vital 3 Tonne

  • Price range: SAR 1,081.40 through SAR 2,856.54
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

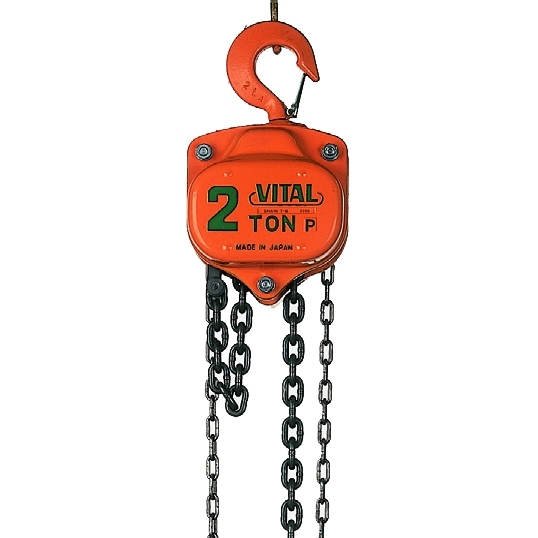

Chain Hoist Vital 2 Tonne

  • Price range: SAR 881.40 through SAR 1,856.54
  • In stock
  • Available Locally
Select options This product has multiple variants. The options may be chosen on the product page

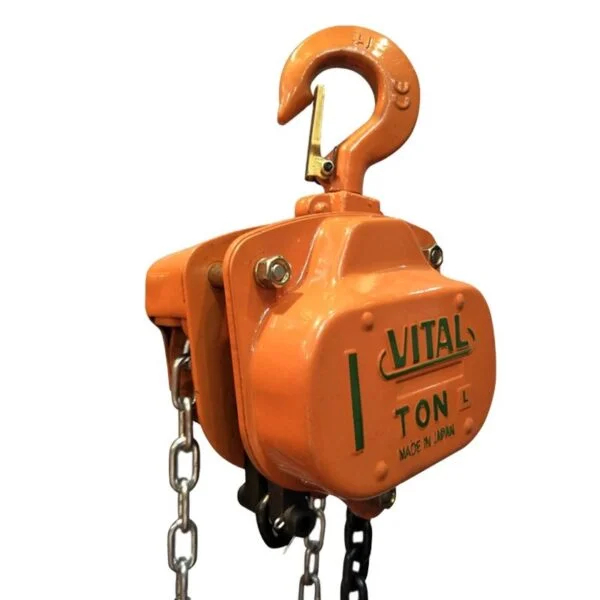

Chain Hoist Vital 1 Tonne
