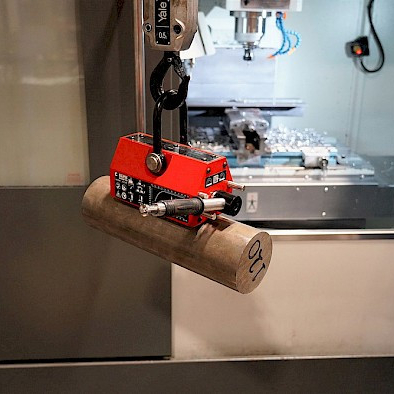

Ultralift E Magnetic Lifter is a cost-effective and high-performance lifting solution designed for safe handling of ferrous materials such as steel plates, flat sections, round bars, pipes, and metal stock. Using advanced permanent magnetic technology, it provides strong gripping force without electricity, making it highly efficient, portable, and easy to operate.
The fail-safe magnetic system ensures the load remains securely held during lifting. A secondary handle locking mechanism provides additional protection against accidental release, making it ideal for factories, workshops, warehouses, fabrication units, and steel processing facilities.
With a guaranteed Working Load Limit (WLL) safety factor of 3:1, this magnetic lifter delivers reliable and efficient performance for everyday industrial lifting tasks.

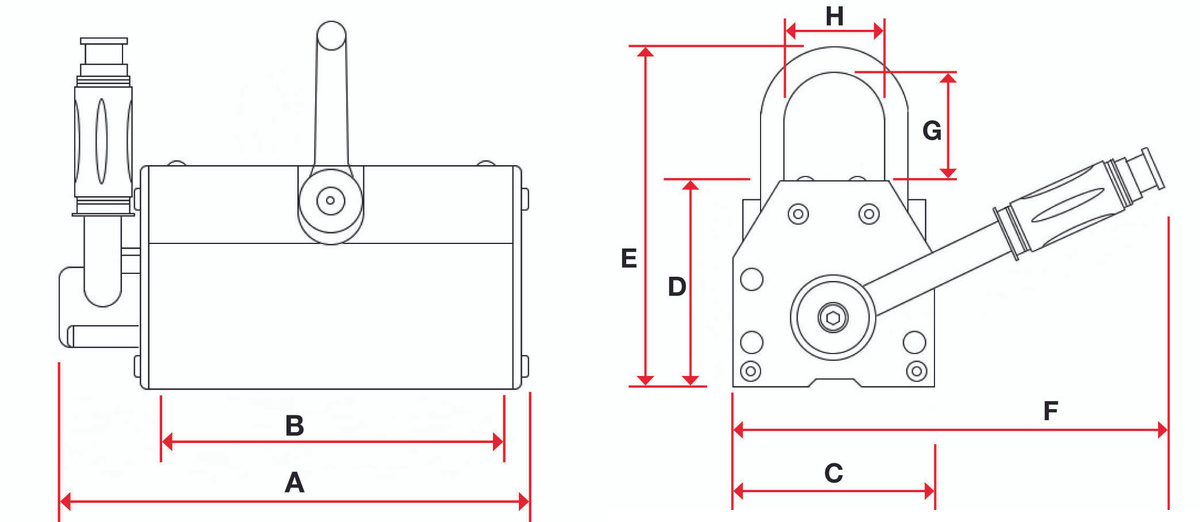

| Capacity | A | B | C | D | E | F | G | H | Self Weight (kg) | Flat Plate / Section WLL (kg) | Flat Plate / Section Minimum Thickness (mm) | Maximum Material Length (mm) | Round Bar WLL (kg) | Round Bar Maximum Diameter (mm) | Units per Pack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 Kg | 131 | 88 | 65 | 73 | 124 | 175 | 45 | 32 | 3 | 100 | 15 | 1000 | 50 | 80 | 1 |
| 300 Kg | 202 | 157 | 95 | 95 | 169 | 253 | 63 | 46 | 10 | 300 | 20 | 1500 | 150 | 100 | 1 |
| 600 Kg | 295 | 240 | 120 | 118 | 220 | 285 | 90 | 61 | 23 | 600 | 30 | 2000 | 300 | 140 | 1 |
| Capacity | 100 Kg, 300 Kg, 600 Kg |
|---|
