US Type Drop Forged Eye and Eye Turnbuckles are known for their exceptional strength and durability. They are forged from high-quality steel, ensuring they can withstand heavy loads and harsh environments.
| Size In | Quantity | Sku | |
|---|---|---|---|
| 1/4x4 in | |||
| 5/16x4-1/2 in | |||
| 3/8x6 in | |||
| 1/2x6 in | |||
| 1/2x12 in | |||
| 5/8x6 in | |||
| 5/8x12 in | |||
| 3/4x6 in | |||
| 3/4x12 in | |||
| 3/4x18 in | |||
| 7/8x12 in | |||
| 1x12 in | |||
| 1x18 in | |||
| 1x24 in | |||
| 1-1/4x12 in | |||
| 1-1/4x18 in | |||
| 1-1/4x24 in | |||
| 1-1/2x12 in | |||
| 1-1/2x18 in | |||
| 1-1/2x24 |
| MOQ | 1 Pallet, 1 Ton or 3000USD |
| Material | Carbon Steel |
| Surface Finish | Hot dip galvanized, Electro Galvanized |
| Sizes | From 1/4”x4” to 2-3/4″x24” |
| Technique Procedure | Drop forged |
| Safety Factor | 5 : 1 or N/A |
| HS code | 732690 |

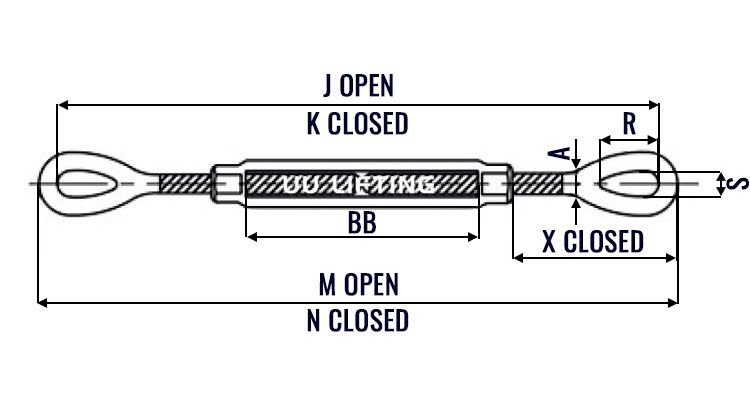

| US Type Drop Forged Eye And Eye Turnbuckle Sizes | |||||||||||
| Size (in) | WLL (lbs) | Weight (lbs) | Dimensions (in) | ||||||||
| A | J | K | M | N | R | S | X | BB | |||
| 1/4×4 | 500 | 0.30 | 0.25 | 11.80 | 7.80 | 12.25 | 8.25 | 0.78 | 0.34 | 1.75 | 4.00 |
| 5/16×4-1/2 | 800 | 0.47 | 0.31 | 13.56 | 9.06 | 14.12 | 9.62 | 0.94 | 0.44 | 2.09 | 4.50 |
| 3/8×6 | 1200 | 0.75 | 0.38 | 17.47 | 11.47 | 18.16 | 12.16 | 1.12 | 0.53 | 2.52 | 6.00 |
| 1/2×6 | 2200 | 1.60 | 0.50 | 19.08 | 13.08 | 19.96 | 13.96 | 1.44 | 0.72 | 3.23 | 6.00 |
| 1/2×9 | 2200 | 1.83 | 0.50 | 25.08 | 16.08 | 25.96 | 16.96 | 1.44 | 0.72 | 3.23 | 9.00 |
| 1/2×12 | 2200 | 2.08 | 0.50 | 31.08 | 19.08 | 31.96 | 19.96 | 1.44 | 0.72 | 3.23 | 12.00 |
| 5/8×6 | 3500 | 2.75 | 0.63 | 20.68 | 14.68 | 21.68 | 15.68 | 1.75 | 0.88 | 3.90 | 6.00 |
| 5/8×9 | 3500 | 3.13 | 0.63 | 26.68 | 17.68 | 27.68 | 18.68 | 1.75 | 0.88 | 3.90 | 9.00 |
| 5/8×12 | 3500 | 3.50 | 0.63 | 32.68 | 20.68 | 33.68 | 21.68 | 1.75 | 0.88 | 3.90 | 12.00 |
| 3/4×6 | 5200 | 3.89 | 0.75 | 22.38 | 16.38 | 23.62 | 17.62 | 2.09 | 1.00 | 4.69 | 6.00 |
| 3/4×9 | 5200 | 4.61 | 0.75 | 28.38 | 19.38 | 29.62 | 20.62 | 2.09 | 1.00 | 4.69 | 9.00 |
| 3/4×12 | 5200 | 5.43 | 0.75 | 34.38 | 22.38 | 35.62 | 23.62 | 2.09 | 1.00 | 4.69 | 12.00 |
| 3/4×18 | 5200 | 7.25 | 0.75 | 46.38 | 28.38 | 47.62 | 29.62 | 2.09 | 1.00 | 4.69 | 18.00 |
| 7/8×12 | 7200 | 8.10 | 0.88 | 35.32 | 23.32 | 36.82 | 24.82 | 2.38 | 1.25 | 5.10 | 12.00 |
| 7/8×18 | 7200 | 9.95 | 0.88 | 47.32 | 29.32 | 48.82 | 30.82 | 2.38 | 1.25 | 5.10 | 18.00 |
| 1×6 | 10000 | 9.33 | 1.00 | 25.97 | 19.97 | 27.72 | 21.72 | 3.00 | 1.44 | 6.36 | 6.00 |
| 1×12 | 10000 | 11.93 | 1.00 | 37.97 | 25.97 | 39.97 | 27.72 | 3.00 | 1.44 | 6.36 | 12.00 |
| 1×18 | 10000 | 14.00 | 1.00 | 49.97 | 31.97 | 51.72 | 33.72 | 3.00 | 1.44 | 6.36 | 18.00 |
| 1×24 | 10000 | 17.25 | 1.00 | 61.97 | 37.97 | 63.72 | 39.72 | 3.00 | 1.44 | 6.36 | 24.00 |
| 1-1/4×12 | 15200 | 19.00 | 1.25 | 40.31 | 28.31 | 42.56 | 30.56 | 3.56 | 1.81 | 7.72 | 12.00 |
| 1-1/4×18 | 15200 | 23.00 | 1.25 | 52.31 | 34.31 | 54.56 | 36.56 | 3.56 | 1.81 | 7.72 | 18.00 |
| 1-1/4×24 | 15200 | 27.00 | 1.25 | 64.31 | 40.31 | 66.56 | 42.56 | 3.56 | 1.81 | 7.72 | 24.00 |
| 1-1/2×12 | 21400 | 27.50 | 1.50 | 42.50 | 30.50 | 45.00 | 33.00 | 4.06 | 2.12 | 8.62 | 12.00 |
| 1-1/2×18 | 21400 | 31.00 | 1.50 | 54.50 | 36.50 | 57.00 | 39.00 | 4.06 | 2.12 | 8.62 | 18.00 |
| 1-1/2×24 | 21400 | 37.50 | 1.50 | 66.50 | 42.50 | 69.00 | 45.00 | 4.06 | 2.12 | 8.62 | 24.00 |
| 1-3/4×18 | 28000 | 52.50 | 1.75 | 57.38 | 39.38 | 60.38 | 42.38 | 4.62 | 2.38 | 10.00 | 18.00 |
| 1-3/4×24 | 28000 | 58.00 | 1.75 | 69.38 | 45.38 | 72.38 | 48.38 | 4.62 | 2.38 | 10.00 | 24.00 |
| 2×24 | 37000 | 85.25 | 2.00 | 75.69 | 51.69 | 79.19 | 55.19 | 5.75 | 2.69 | 13.09 | 24.00 |
| 2-1/2×24 | 60000 | 144.25 | 2.50 | 78.62 | 54.62 | 82.62 | 58.62 | 6.50 | 3.12 | 13.78 | 24.00 |
| 2-3/4×24 | 75000 | 194.00 | 2.75 | 81.00 | 57.00 | 85.50 | 61.50 | 7.00 | 3.25 | 15.22 | 24.00 |
| Size (in) | 1/4×4 in, 5/16×4-1/2 in, 3/8×6 in, 1/2×6 in, 1/2×12 in, 5/8×6 in, 5/8×12 in, 3/4×6 in, 3/4×12 in, 3/4×18 in, 7/8×12 in, 1×12 in, 1×18 in, 1×24 in, 1-1/4×12 in, 1-1/4×18 in, 1-1/4×24 in, 1-1/2×12 in, 1-1/2×18 in, 1-1/2×24 |
|---|
