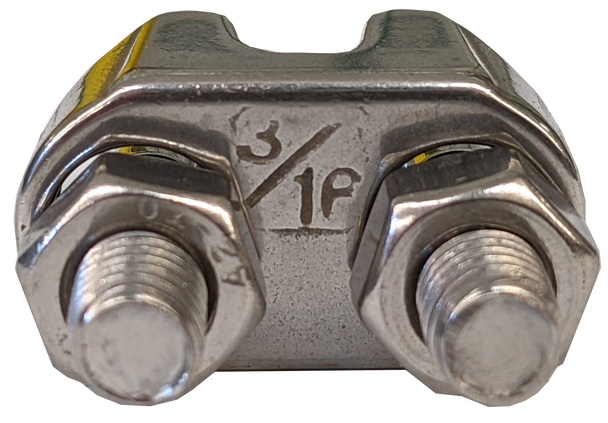

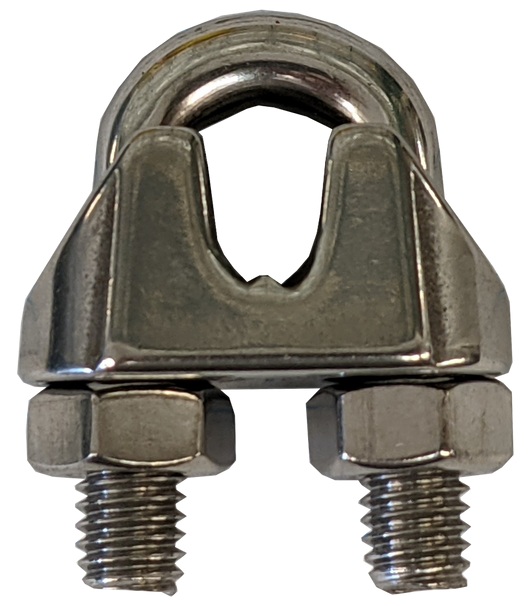

Stainless steel cable clamps, also known as stainless steel wire rope clamps or stainless steel cable clips, are a type of hardware used to fasten the ends of stainless steel wire ropes or cables together. These clamps are designed to provide a secure and durable connection that is resistant to corrosion and suitable for use in outdoor, marine, and harsh environments.
| Size | Quantity | Sku | |
|---|---|---|---|
| 3MM | |||
| 5MM | |||
| 6MM | |||
| 8MM | |||
| 10MM | |||
| 11MM | |||
| 13MM | |||
| 14MM | |||
| 16MM | |||
| 19MM | |||
| 22MM | |||
| 26MM | |||
| 30MM | |||
| 34MM | |||
| 40MM | |||
| 40/50MM |
| SIZE MM | A MM | B MM | C MM | D MM | E MM | F MM | G MM | W/100PCS KGS |
| 3MM | M4 | 21 | 10 | 10 | 9 | 12 | 16.6 | 1.4 |
| 5MM | M5 | 23 | 10 | 11 | 11 | 13 | 19.65 | 1.5 |
| 6MM | M5 | 26 | 11 | 12 | 13 | 15 | 23.65 | 2.1 |
| 8MM | M6 | 30 | 15 | 14 | 16 | 19 | 28.85 | 4.1 |
| 10MM | M8 | 34 | 17 | 18 | 19 | 22 | 35 | 6.8 |
| 11MM | M8 | 36 | 18 | 19 | 20 | 22 | 37 | 7.2 |
| 13MM | M10 | 40 | 21 | 23 | 24 | 30 | 46.24 | 13 |
| 14MM | M10 | 44 | 22 | 23 | 25 | 30 | 48.24 | 13.5 |
| 16MM | M12 | 50 | 26 | 26 | 29 | 33 | 52.5 | 21 |
| 19MM | M12 | 54 | 30 | 29 | 32 | 38 | 64.5 | 28 |
| 22MM | M14 | 61 | 34 | 33 | 37 | 44 | 72.5 | 40 |
| 26MM | M14 | 65 | 37 | 35 | 41 | 45 | 82.5 | 44 |
| 30MM | M16 | 74 | 43 | 37 | 48 | 50 | 95.6 | 66 |
| 34MM | M16 | 80 | 50 | 42 | 52 | 55 | 105.6 | 85 |
| 40MM | M16 | 88 | 55 | 45 | 58 | 60 | 125.6 | 104 |
| 40/50MM | M20 | 105 | 63 | 52 | 69 | 98 | 176 | 200 |
NOTE:
It’s essential to follow the manufacturer’s instructions and guidelines when installing wire rope clips to ensure proper usage and safety. Incorrect installation can compromise the strength and reliability of the connection, leading to potential accidents.
Stainless steel cable clamps are commonly used in marine applications, outdoor rigging, architectural applications, and anywhere that requires a durable and corrosion-resistant wire rope connection. They come in various sizes to accommodate different wire rope diameters.
When installing stainless steel cable clamps, it is essential to follow the manufacturer’s instructions and guidelines to ensure a proper and safe connection. Additionally, always use the appropriate number of clamps and ensure they are correctly spaced according to the wire rope diameter and the specific application requirements. Regularly inspect the clamps and wire rope for signs of wear, damage, or loosening to maintain the integrity of the connection over time.
As with any rigging hardware, it is essential to select the appropriate size and type of cable clamps based on the intended use and the specific load requirements. If you have specific application requirements or safety concerns, it is advisable to consult with a professional rigging expert or engineer to ensure the proper selection and installation of stainless steel clamps.
| Size | 3MM, 5MM, 6MM, 8MM, 10MM, 11MM, 13MM, 14MM, 16MM, 19MM, 22MM, 26MM, 30MM, 34MM, 40MM, 40/50MM |
|---|
