DIN 1480 jaw and jaw turnbuckles are widely used in various industries and applications due to their versatility and reliability. These turnbuckles are commonly used in construction, marine, and industrial settings.
| MOQ | 1 Pallet, 1 Ton or 3000USD |
| Material | Carbon Steel |
| Surface Finish | Hot dip galvanized, Electro Galvanized |
| Sizes | From 6mm to 36mm |
| Technique Procedure | Drop forged |
| Safety Factor | 5 : 1 or N/A |
| HS code | 732690 |

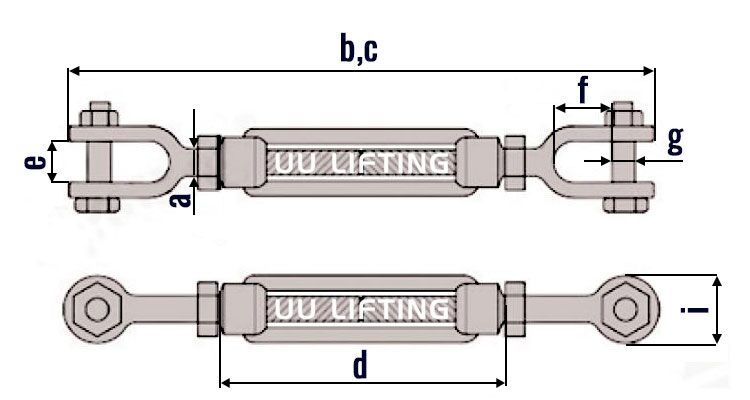

| DIN 1480 Jaw And Jaw Turnbuckle Sizes | |||||||
| Size (a) (mm) | Dimensions (mm) | Weight (kg) | |||||
| b | c | d | e | f | g | ||
| 6 | 240 | 326 | 110 | 86 | 120 | 65 | 0.093 |
| 8 | 240 | 320 | 110 | 80 | 120 | 65 | 0.14 |
| 10 | 300 | 389 | 125 | 89 | 150 | 75 | 0.29 |
| 12 | 300 | 383 | 125 | 83 | 150 | 75 | 0.40 |
| 14 | 330 | 420 | 140 | 90 | 165 | 85 | 0.66 |
| 16 | 400 | 516 | 170 | 116 | 200 | 100 | 0.89 |
| 20 | 440 | 572 | 200 | 132 | 220 | 120 | 1.60 |
| 22 | 440 | 585 | 220 | 145 | 220 | 130 | 2.27 |
| 24 | 520 | 697 | 255 | 177 | 260 | 150 | 2.82 |
| 30 | 520 | 695 | 255 | 165 | 260 | 160 | 4.23 |
| 36 | 600 | 780 | 295 | 185 | 300 | 180 | 7.10 |
| Size (mm) | 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm |
|---|
