Grade 100 alloy steel lifting chain for chain slings, cranes, hoists, and overhead lifting. 25% stronger than Grade 80 chain with blue painted finish and certified heavy-duty performance.
Lifting Chain Grade 100 is a premium heavy-duty overhead lifting chain manufactured from high tensile Grade 100 alloy steel with 200° temper treatment, designed for chain slings, hoisting systems, cranes, industrial lifting, and heavy material handling applications.
Grade 100 chain provides 25% higher lifting capacity than Grade 80 chain of the same size, making it an ideal choice for demanding commercial and industrial environments where maximum strength and reliability are required.

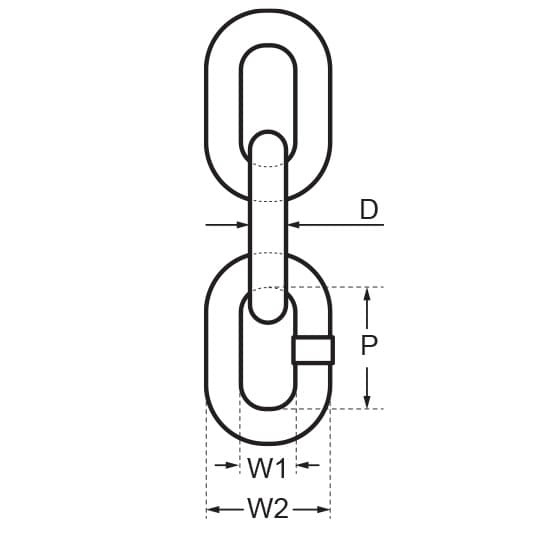

| Size | Weight (kg/m) | WLL (Ton) | Test Load (kN) | Tensile Load (kN) | Pitch (mm) |
|---|---|---|---|---|---|
| 6mm | 0.9 | 1.4 | 35.3 | 56.5 | 18 |
| 7mm | 1.2 | 1.9 | 48.1 | 77 | 21 |
| 8mm | 1.6 | 2.5 | 62.8 | 101 | 24 |
| 10mm | 2.5 | 4 | 98.2 | 157 | 30 |
| 13mm | 4.2 | 6.7 | 166 | 265 | 39 |
| 16mm | 6.2 | 10 | 251 | 402 | 48 |
| 19mm | 9.0 | 14 | 354 | 567 | 57 |
| 20mm | 10.0 | 16 | 393 | 628 | 60 |
| 22mm | 11.9 | 19 | 457 | 760 | 66 |
| 26mm | 16.3 | 26.5 | 664 | 1060 | 78 |
| 32mm | 24.3 | 40 | 1005 | 1610 | 96 |
| Size (MM) | 6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 19mm, 20mm, 22mm, 26mm, 32mm |
|---|---|
| Length | 1 Meter |
